  제품명 : 15W-K7RG15N



CAD파일 다운로드(도면)



OUTPUT MODEL TYPE
15W

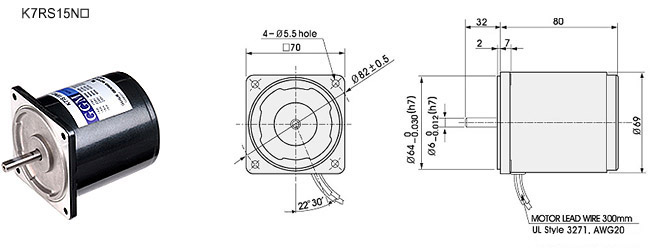

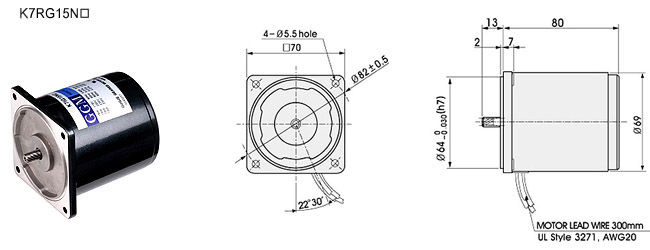

(□70mm) 		K7RG15N□, K7RS15N□ LEAD WIRE TYPE










30분정격, 4극
Model Output
(W) 		Voltage
(V) 		Frequency
(Hz) 		Current
(A) 		Starting
torque
(mN·m)
(gfcm) 		Rated
Torque
(mN·m)
(gfcm) 		Speed
(rpm)

Condenser

K7RG15NU
K7RS15NU		 단상 15 110 60 0.42 100
1000 		100
1000 		1500 6
115 0.41
K7RG15NC


K7RS15NC		 단상 15 220 60 0.21 100

1000 		100
1000 		1500 1.5
230 50 120
1200 		1250
60 100
1200 		1500
