  제품명 : 15W-K7RG15N□-SP



CAD파일 다운로드(도면)



OUTPUT MODEL TYPE
15W

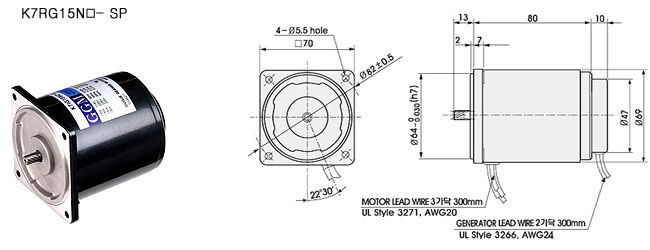

(□70mm) 		K7RG15N□-SP

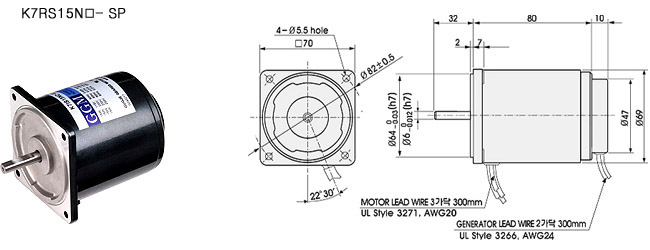

K7RS15N□-SP		 REVERSIBLE MOTORS









연속정격, 4극
Model Maximum
Output
(W) 		Voltage
(V) 		Frequency
(Hz) 		Speed
Range
(rpm)		 Pemissible torque Starting
Torque
mN·m
gfcm		 Current
(A)

Input
(W)

Condenser

120rpm 90rpm
mN·m
grcm 		mN·m
grcm
K7RG15NU-SP


K7RS15NU-SP		 단상 15 110 60 90~1600 125

1250 		70

700		 75
750 		0.58 90 6
115 85
850
K7RG15NC-SP


K7RS15NC-SP		 단상 15 220 60 90~1600 125

1250 		70

700 		90
900 		0.29 53 1.5
230 50 90~1400 100

1000 		0.30 63
60 90~1600 0.29 53
