  제품명 : 25W-K8RG25N□-SP

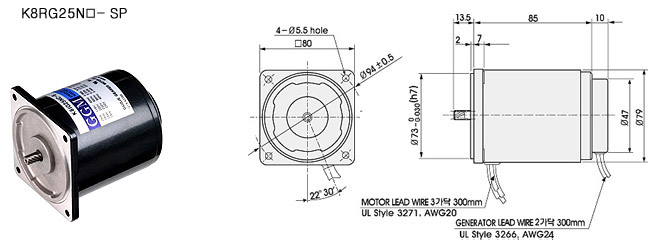

CAD파일 다운로드(도면)



OUTPUT MODEL TYPE
25W
(□80mm) 		K8RG25N□-SP
K8RS25N□-SP		 REVERSIBLE MOTORS









연속정격, 4극
Model Maximum
Output
(W) 		Voltage
(V) 		Frequency
(Hz) 		Speed
Range
(rpm)		 Pemissible torque Starting
Torque
mN·m
gfcm		 Current
(A)

Input
(W)

Condenser

120rpm 90rpm
mN·m
grcm 		mN·m
grcm
K8RG25NU-SP


K8RS25NU-SP		 단상 25 110 60 90~1600 205

2050 		95

950		 100
1000 		0.93 90 6
115 110
1100
K8RG25NC-SP


K8RS25NC-SP		 단상 25 220 60 90~1600 205
2050 		95
950 		130
1300 		0.44 84 2
230 50 90~1400 150
1500 		82
60 90~1600 140
1400 		86
