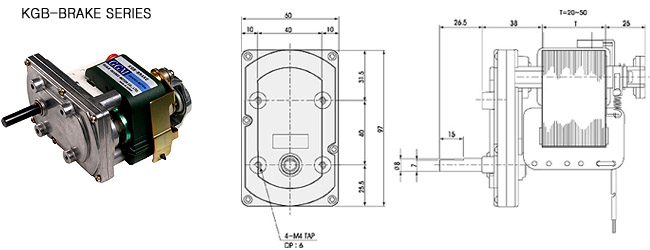

제품명 : KGB-BRAKE |
| |
|
| |
|
| |
|
|
|
| |
|
|
| TYPE |
SERIES |
KGB-BRAKE
|
KGB-BRAKE SERIES | |
|
|
|
|
|
|
|
|
 |
 |
| MOTOR |
6120 |
6130 |
6140 |
6150 |
| VOLTAGE(V) |
110AC |
110AC |
110AC |
110AC |
| FREQ(Hz) |
50 |
60 |
50 |
60 |
50 |
60 |
50 |
60 |
| OUT PUT(W) |
2.5 |
2.9 |
4.6 |
5.0 |
6.4 |
6.8 |
8.5 |
9.1 |
| NO LOAD SPEED(RPM) |
2850 |
3450 |
2850 |
3450 |
2850 |
3450 |
2850 |
3450 |
| NO LOAD CURRENT(A) |
1.4 |
1.0 |
2.1 |
1.5 |
2.3 |
1.8 |
3.0 |
2.4 |
| START TORQ(g.Cm) |
90 |
70 |
170 |
145 |
240 |
195 |
300 |
255 |
| STALL TORQ(g.Cm) |
130 |
115 |
320 |
300 |
400 |
350 |
520 |
480 |
| RATED TORQ(g.Cm) |
101 |
97 |
186 |
137 |
260 |
229 |
345 |
305 |
| RATED SPEED(RPM) |
2400 |
2900 |
2400 |
2900 |
2400 |
2900 |
2400 |
2900 |
| RUNING TIME |
5MIN |
5MIN |
5MIN |
5MIN |
| MOTOR |
6120 |
6130 |
6140 |
6150 |
| VOLTAGE(V) |
220AC |
220AC |
220AC |
220AC |
| FREQ(Hz) |
50 |
60 |
50 |
60 |
50 |
60 |
50 |
60 |
| OUT PUT(W) |
2.5 |
2.9 |
4.6 |
5.0 |
6.4 |
6.8 |
8.5 |
9.1 |
| NO LOAD SPEED(RPM) |
2850 |
3450 |
2850 |
3450 |
2850 |
3450 |
2850 |
3450 |
| NO LOAD CURRENT(A) |
0.7 |
0.5 |
1.1 |
0.7 |
1.2 |
0.9 |
1.5 |
1.2 |
| START TORQ(g.Cm) |
90 |
70 |
170 |
145 |
240 |
195 |
300 |
255 |
| STALL TORQ(g.Cm) |
130 |
115 |
320 |
300 |
400 |
350 |
520 |
480 |
| RATED TORQ(g.Cm) |
101 |
97 |
186 |
137 |
260 |
229 |
345 |
305 |
| RATED SPEED(RPM) |
2400 |
2900 |
2400 |
2900 |
2400 |
2900 |
2400 |
2900 |
| RUNING TIME |
5MIN |
5MIN |
5MIN |
5MIN |
| MOTOR |
6120 |
6130 |
6140 |
6150 |
| FREQ(Hz) |
50 |
60 |
50 |
60 |
50 |
60 |
50 |
60 |
| GEAR |
RPM |
Kg.Cm |
RPM |
Kg.Cm |
RPM |
Kg.Cm |
RPM |
Kg.Cm |
RPM |
Kg.Cm |
RPM |
Kg.Cm |
RPM |
Kg.Cm |
RPM |
Kg.Cm |
| 1/10 |
240.0 |
0.7 |
290.0 |
0.7 |
240.0 |
1.4 |
290.0 |
1.0 |
240.0 |
1.9 |
290.0 |
1.7 |
240.0 |
2.5 |
290.0 |
2.2 |
| 1/15 |
160.0 |
1.1 |
193.3 |
1.1 |
160.0 |
2.0 |
193.3 |
1.5 |
160.0 |
2.8 |
193.3 |
2.5 |
160.0 |
3.8 |
193.3 |
3.3 |
| 1/21 |
114.3 |
1.5 |
138.1 |
1.5 |
114.3 |
2.8 |
138.1 |
2.1 |
114.3 |
4.0 |
138.1 |
3.5 |
114.3 |
5.3 |
138.1 |
4.7 |
| 1/27 |
88.9 |
2.0 |
107.4 |
1.9 |
88.9 |
3.7 |
107.4 |
2.7 |
88.9 |
5.1 |
107.4 |
4.5 |
88.9 |
6.8 |
107.4 |
6.0 |
| 1/36 |
66.7 |
2.7 |
80.6 |
2.5 |
66.7 |
4.9 |
80.6 |
3.6 |
66.7 |
6.8 |
80.6 |
6.0 |
66.7 |
9.1 |
80.6 |
8.0 |
| 1/43 |
55.8 |
3.2 |
67.4 |
3.0 |
55.8 |
5.8 |
67.4 |
4.3 |
55.8 |
8.2 |
67.4 |
7.1 |
55.8 |
10.8 |
67.4 |
9.6 |
| 1/47 |
51.1 |
3.5 |
61.7 |
3.3 |
51.1 |
6.4 |
61.7 |
4.7 |
51.1 |
8.9 |
61.7 |
7.8 |
51.1 |
11.8 |
61.7 |
10.5 |
| 1/55 |
43.6 |
4.0 |
52.7 |
3.9 |
43.6 |
7.5 |
52.7 |
5.5 |
43.6 |
10.4 |
52.7 |
9.1 |
43.6 |
13.8 |
52.7 |
12.2 |
| 1/60 |
40.0 |
4.4 |
48.3 |
4.2 |
40.0 |
8.1 |
48.3 |
6.0 |
40.0 |
11.4 |
48.3 |
10.0 |
40.0 |
15.1 |
48.3 |
13.3 |
| 1/75 |
32.0 |
5.5 |
38.7 |
5.3 |
32.0 |
10.2 |
38.7 |
7.5 |
32.0 |
14.2 |
38.7 |
12.5 |
32.0 |
18.9 |
38.7 |
16.7 |
| 1/86 |
27.9 |
6.3 |
33.7 |
6.1 |
27.9 |
11.7 |
33.7 |
8.6 |
27.9 |
16.3 |
33.7 |
14.3 |
27.9 |
20 |
33.7 |
19.1 |
| 1/100 |
24.0 |
7.4 |
29.0 |
7.1 |
24.0 |
13.6 |
29.0 |
10.0 |
24.0 |
19.0 |
29.0 |
16.6 |
24.0 |
20 |
29.0 |
20 |
| 1/115 |
20.9 |
8.5 |
25.2 |
8.1 |
20.9 |
15.6 |
25.2 |
11.5 |
20.9 |
20 |
25.2 |
19.1 |
20.9 |
20 |
25.2 |
20 |
| 1/126 |
19.0 |
9.3 |
23.0 |
8.9 |
19.0 |
17.1 |
23.0 |
12.6 |
19.0 |
20 |
23.0 |
20 |
19.0 |
20 |
23.0 |
20 |
| 1/131 |
18.3 |
9.6 |
22.1 |
9.3 |
18.3 |
17.8 |
22.1 |
13.1 |
18.3 |
20 |
22.1 |
20 |
18.3 |
20 |
22.1 |
20 |
| 1/154 |
15.6 |
11.3 |
18.8 |
10.9 |
15.6 |
20 |
18.8 |
15.4 |
15.6 |
20 |
18.8 |
20 |
15.6 |
20 |
18.8 |
19.5 |
| 1/172 |
14.0 |
12.7 |
16.9 |
12.2 |
14.0 |
20 |
16.9 |
17.2 |
14.0 |
20 |
16.9 |
20 |
14.0 |
20 |
16.9 |
20 |
| 1/215 |
11.2 |
15.8 |
13.5 |
15.2 |
11.2 |
20 |
13.5 |
20 |
11.2 |
20 |
13.5 |
20 |
11.2 |
20 |
13.5 |
20 |
| 1/300 |
8.0 |
19.9 |
9.7 |
19.1 |
8.0 |
20 |
9.7 |
20 |
8.0 |
20 |
9.7 |
20 |
8.0 |
20 |
9.7 |
20 |
| 1/380 |
6.3 |
20 |
7.6 |
20 |
6.3 |
20 |
7.6 |
20 |
6.3 |
20 |
7.6 |
20 |
6.3 |
20 |
7.6 |
20 |
| 1/408 |
5.9 |
20 |
7.1 |
20 |
5.9 |
20 |
7.1 |
20 |
5.9 |
20 |
7.1 |
20 |
5.9 |
20 |
7.1 |
20 |
| 1/532 |
4.5 |
20 |
5.5 |
20 |
4.5 |
20 |
5.5 |
20 |
4.5 |
20 |
5.5 |
20 |
4.5 |
20 |
5.5 |
20 |
| 1/673 |
3.6 |
20 |
4.3 |
20 |
3.6 |
20 |
4.3 |
20 |
3.6 |
20 |
4.3 |
20 |
3.6 |
20 |
4.3 |
20 |
| 1/825 |
2.9 |
20 |
3.5 |
20 |
2.9 |
20 |
3.5 |
20 |
2.9 |
20 |
3.5 |
20 |
2.9 |
20 |
3.5 |
20 | |
|
|
|
|
|
|
