  제품명 : KGL



CAD파일 다운로드(도면)



TYPE SERIES
KGL

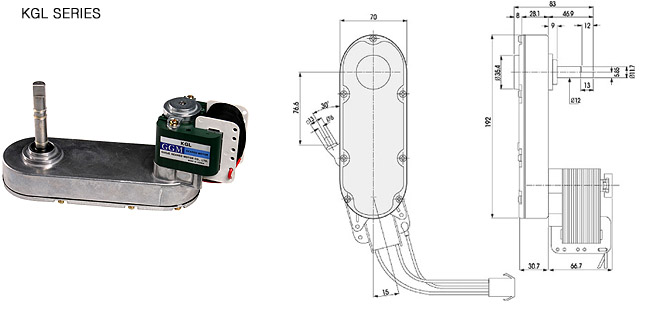

 KGL SERIES







MOTOR 6120 6130 6140 6150
VOLTAGE(V) 110AC 110AC 110AC 110AC
FREQ(Hz) 50 60 50 60 50 60 50 60
OUT PUT(W) 1.9 1.8 3.7 3.3 4.5 4.1 5.8 5.2
NO LOAD SPEED(RPM) 2850 3450 2850 3450 2850 3450 2850 3450
NO LOAD CURRENT(A) 0.28 0.22 0.35 0.30 0.37 0.32 0.45 0.40
START TORQ(g.Cm) 55 35 90 60 110 80 150 120
STALL TORQ(g.Cm) 95 65 153 120 187 145 255 200
RATED TORQ(g.Cm) 77 60 150 110 182 137 235 174
RATED SPEED(RPM) 2400 2900 2400 2900 2400 2900 2400 2900
RUNING TIME CONTINUTY CONTINUTY CONTINUTY CONTINUTY


MOTOR 6120 6130 6140 6150
VOLTAGE(V) 220AC 220AC 220AC 220AC
FREQ(Hz) 50 60 50 60 50 60 50 60
OUT PUT(W) 1.9 1.8 3.7 3.3 4.5 4.1 5.8 5.2
NO LOAD SPEED(RPM) 2850 3450 2850 3450 2850 3450 2850 3450
NO LOAD CURRENT(A) 0.14 0.11 0.17 0.15 0.19 0.16 0.23 0.20
START TORQ(g.Cm) 55 35 90 60 110 80 150 120
STALL TORQ(g.Cm) 95 65 153 120 187 145 255 200
RATED TORQ(g.Cm) 77 60 150 110 182 137 235 174
RATED SPEED(RPM) 2400 2900 2400 2900 2400 2900 2400 2900
RUNING TIME CONTINUTY CONTINUTY CONTINUTY CONTINUTY


MOTOR 6120 6130 6140 6150
FREQ(Hz) 50 60 50 60 50 60 50 60
GEAR RPM Kg.Cm RPM Kg.Cm RPM Kg.Cm RPM Kg.Cm RPM Kg.Cm RPM Kg.Cm RPM Kg.Cm RPM Kg.Cm
1/082 29.2 5.7 35.3 4.5 29.2 11.1 35.3 8.1 29.2 13.4 35.3 10.1 29.2 17.3 35.3 12.8
