  제품명 : KM-3429 SERIES



CAD파일 다운로드(도면)



TYPE SERIES

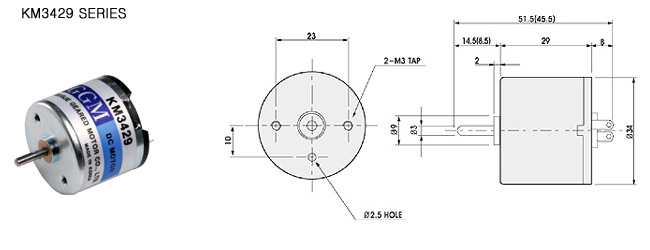

KM KM-3429 SERIES

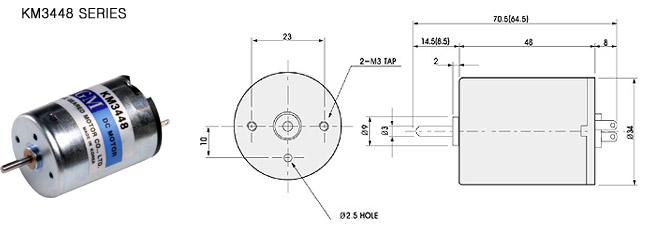

KM-3448 SERIES






VOLTAGE
(V)		 NO LOAD AT MAX EFF STALL WEIGHT
(g)
mA RPM g.Cm mA RPM mA g.Cm
KM3429A 24DC 50 5200 40 200 4500 950 370 90
KM3429B 24DC 100 9500 45 250 8000 2950 400 90
KM3429C 12DC 140 7500 40 230 6500 3150 380 90
KM3429D 24DC 25 2500 20 100 2200 295 180 90
KM3429E 24DC 60 7000 40 220 6000 1250 380 90
KM3448A 24DC 70 5200 80 250 4500 1950 790 140
KM3448B 24DC 90 7500 90 300 6500 3250 850 140
KM3448C 24DC 10 950 15 20 850 110 150 140
KM3448D 12DC 100 5200 80 300 4500 3200 830 140
KM3448E 24DC 20 2500 40 40 2000 490 390 140
