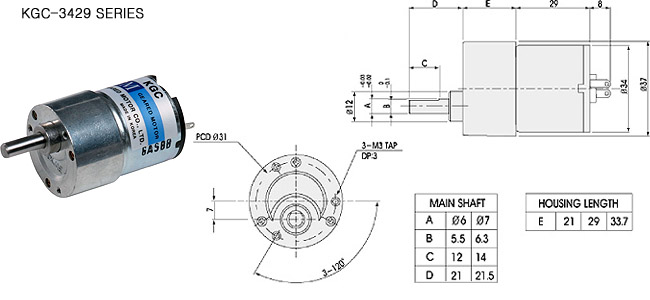

제품명 : KGC-3429 SERIES
CAD파일 다운로드(도면)
TYPE
SERIES
KGC
KGC-3429 SERIES
KGC-3448 SERIES
KM3429A(24VDC)
KM3429B(24VDC)
KM3429C(12VDC)
KM3429D(24VDC)
KM3429E(24VDC)
HOUSING
LENGTH
RPM
Kg.Cm
RPM
Kg.Cm
RPM
Kg.Cm
RPM
Kg.Cm
RPM
Kg.Cm
1/002
2250.0
0.06
4000.0
0.07
3250.0
0.06
1100.0
0.03
3000.0
0.06
21
1/003
1500.0
0.10
2166.0
0.11
2166.0
0.10
733.0
0.05
2000.0
0.10
1/005
900.0
0.16
1600.0
0.18
1300.0
0.16
440.0
0.08
1200.0
0.16
1/010
450.0
0.29
800.0
0.36
650.0
0.29
220.0
0.15
600.0
0.29
1/015
300.0
0.44
533.3
0.5
433.3
0.44
146.6
0.22
400.0
0.44
1/020
225.0
0.58
400.0
0.6
325.0
0.58
110.0
0.29
300.0
0.58
1/025
180.0
0.70
3210.0
0.8
260.0
0.7
88.0
0.35
240.0
0.70
1/030
150.0
0.90
266.6
1.0
216.6
0.9
73.6
0.45
200.0
0.91
1/040
112.5
1.00
200.0
1.2
162.5
1.0
55.0
0.51
150.0
1.00
29
1/050
90.0
1.30
160.0
1.5
130.0
1.3
44.0
0.65
120.0
1.32
1/060
75.0
1.60
133.3
1.7
108.3
1.6
36.6
0.80
100.0
1.60
1/070
64.3
1.65
114.3
1.8
92.8
1.7
21.4
0.85
85.7
1.65
1/080
56.2
1.90
100.0
2.1
81.2
1.9
27.5
0.90
75.0
1090
1/083
54.2
1.95
96.4
2.2
78.3
2.0
26.5
0.95
72.2
1.95
1/090
50.0
2.10
88.9
2.4
72.2
2.1
24.4
1.05
66.6
2.11
1/100
45.0
2.30
80.0
2.6
65.0
2.6
22.0
1.15
60.0
2.33
1/120
37.5
2.80
66.6
3.2
54.1
2.8
18.3
1.43
50.0
2.82
1/150
30.0
3.50
53.3
4.0
43.3
3.5
14.6
1.75
40.0
3.51
1/180
25.0
4.20
44.4
4.7
36.1
4.2
12.2
2.12
33.3
4.24
1/200
22.5
4.70
40.0
4.7
32.5
4.7
11.0
2.34
30.0
4.71
1/210
21.4
4.90
38.1
5.5
30.9
4.9
10.4
2.51
28.5
4.92
1/240
18.7
5.10
33.3
5.7
27.1
5.1
9.1
2.55
25.0
5.13
1/300
15.0
6
26.6
6
21.6
6
7.3
3.22
20.0
6
33.7
1/360
12.5
6
22.2
6
18.0
6
6.1
3.81
16.6
6
1/400
11.2
6
20.0
60
16.2
6
5.5
3.82
15.0
6
1/500
9.0
6
16.0
6
13.0
6
4.4
4.81
12.0
6
1/600
7.5
6
13.3
6
10.8
6
3.6
5.72
10.0
6
1/750
6.0
6
10.6
6
8.6
6
2.9
6
8.0
6
1/900
5.0
6
8.9
6
7.2
6
2.4
6
6.6
6
1/1080
4.1
6
7.4
6
6.0
6
2.0
6
5.5
6
1/1350
3.3
6
5.9
6
4.8
6
1.6
6
4.4
6
1/1620
2.8
6
4.9
6
4.0
6
1.3
6
3.7
6
1/2430
1.8
6
3.3
6
2.7
6
0.9
6
2.4
6

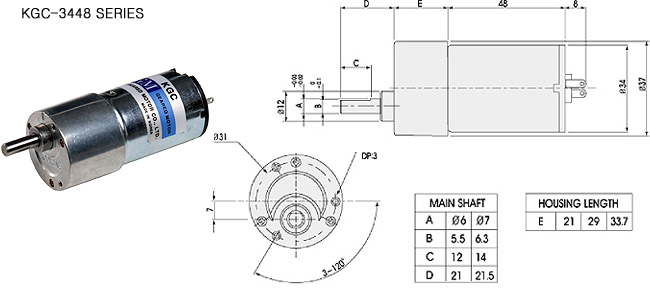

KM3448A(24VDC)
KM3448B(24VDC)
KM3448C(12VDC)
KM3448D(24VDC)
KM3448E(24VDC)
HOUSING
LENGTH
RPM
Kg.Cm
RPM
Kg.Cm
RPM
Kg.Cm
RPM
Kg.Cm
RPM
Kg.Cm
1/002
2250.0
0.13
3250.0
0.14
425.0
0.02
2250.
0.13
1000.0
0.06
21
1/003
1500.0
0.19
2167.0
0.22
283.0
0.03
1500.0
0.19
667.0
0.09
1/005
900.0
0.32
1300.0
0.36
170.0
0.06
900.0
0.32
400.0
0.16
1/010
450.0
0.65
650.0
0.36
85.0
0.12
450.0
0.65
200.0
0.33
1/015
300.0
0.87
433.3
0.72
56.6
0.16
300.0
0.87
133.3
0.44
1/020
225.0
1.1
325.0
1.0
42.5
0.21
225.0
1.1
100.0
0.55
1/025
180.0
1.4
260.0
1.3
34.0
0.27
180.0
1.4
80.0
0.7
1/030
150.0
1.7
216.6
1.6
28.3
0.33
150.0
1.7
66.6
0.8
1/040
112.5
2.1
162.5
1.9
21.2
0.39
112.5
2.1
50.0
1.0
240
1/050
90.0
2.6
130.0
2.3
17.0
0.49
90.0
2.6
40.0
1.3
1/060
75.0
3.1
108.3
2.9
14.1
0.59
75.0
3.1
33.3
1.5
1/070
64.3
3.3
92.8
3.5
12.1
0.62
64.3
3.3
28.5
1.7
1/080
56.2
3.8
81.2
3.7
10.6
0.70
56.2
3.8
25.0
1.9
1/083
54.2
3.9
78.3
4.2
10.2
0.73
54.2
3.9
24.1
2.0
1/090
50.0
4.2
72.2
4.4
9.4
0.8
50.0
4.2
22.2
2.1
1/100
45.0
4.7
65.0
4.7
8.5
0.9
45.0
4.7
20.0
2.3
1/120
37.5
5.6
54.1
5.3
7.1
1.0
37.5
5.6
16.6
2.8
1/150
30.0
6
43.3
6
5.6
1.3
30.0
6.
13.3
3.5
1/180
25.0
6
36.1
6
4.7
1.6
25.0
6
11.1
4.2
1/200
22.5
6
32.5
6
4.2
1.6
22.5
6
10.0
4.2
1/210
21.4
6
30.9
6
4.0
1.8
21.4
6
9.5
4.9
1/240
18.7
6
27.1
6
3.5
1.9
18.7
6
8.3
5.1
1/300
15.0
6
21.6
6
2.8
2.4
15.0
6
6.6
6
33.7
1/360
12.5
6
18.0
6
2.3
2.8
12.5
6
5.5
6
1/400
11.2
6
16.2
6
2.0
2.8
11.2
6
5.0
6
1/500
9.0
6
13.0
6
1.7
3.5
9.0
6
4.0
6
1/600
7.5
6
10.8
6
1.4
4.2
7.5
6
3.3
6
1/750
6.0
6
8.6
6
1.1
5.3
6.0
6
2.6
6
1/900
5.0
6
7.2
6
0.9
6
5.0
6
2.2
6
1/1080
4.1
6
6.0
6
0.8
6
4.1
6
1.8
6
1/1350
3.3
6
4.8
6
0.6
6
3.3
6
1.5
6
1/1620
2.8
6
4.0
6
0.5
6
2.8
6
1.2
6
1/2430
1.8
6
2.6
6
0.3
6
1.8
6
0.8
6
