제품명 : KGD-3429 SERIES |
| |
|
| |
|
| |
|
|
|
| |
|
|
| TYPE |
SERIES |
| KGD |

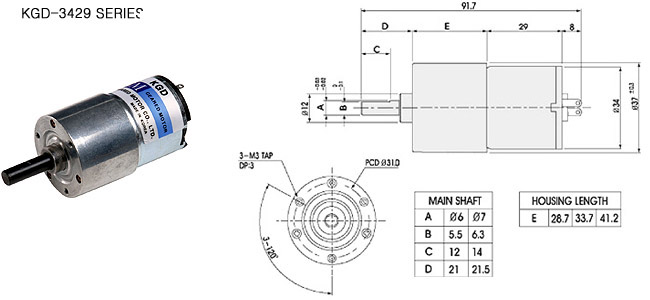

KGD-3429 SERIES | |
|
|
|
|
|
|
|
|
 |
 |
 |
KM3429A(24VDC) |
KM3429B(24VDC) |
KM3429C(12VDC) |
KM3429D(24VDC) |
KM3429E(24VDC) |
HOUSING
LENGTH |
| RPM |
Kg.Cm |
RPM |
Kg.Cm |
RPM |
Kg.Cm |
RPM |
Kg.Cm |
RPM |
Kg.Cm |
| 1/003 |
1500.0 |
0.06 |
2667.0 |
0.11 |
2167.0 |
0.06 |
733.0 |
0.03 |
2000.0 |
0.06 |
28.7 |
| 1/005 |
900.0 |
0.15 |
1600.0 |
0.18 |
1300.0 |
0.15 |
440.0 |
0.07 |
1200.0 |
0.15 |
| 1/010 |
450.0 |
0.32 |
800.0 |
0.36 |
650.0 |
0.32 |
220.0 |
0.16 |
600.0 |
0.32 |
| 1/015 |
300.0 |
0.4 |
533.3 |
0.5 |
433.3 |
0.4 |
146.6 |
0.20 |
400.0 |
0.4 |
| 1/020 |
225.0 |
0.6 |
400.0 |
0.6 |
325.0 |
0.6 |
110.0 |
0.30 |
300.0 |
0.6 |
| 1/025 |
180.0 |
0.7 |
320.0 |
0.8 |
260.0 |
0.7 |
88.0 |
0.35 |
240.0 |
0.7 |
33.7 |
| 1/030 |
150.0 |
0.9 |
266.6 |
1.0 |
216.6 |
0.9 |
73.3 |
0.45 |
200.0 |
0.9 |
| 1/040 |
112.5 |
1.0 |
200.0 |
1.0 |
162.5 |
1.0 |
55.0 |
0.50 |
150.0 |
1.0 |
| 1/050 |
90.0 |
1.3 |
160.0 |
1 |
130.0 |
1.3 |
44.0 |
0.65 |
120.0 |
1.3 |
| 1/060 |
75.0 |
1.5 |
133.3 |
1.7 |
108.3 |
1.5 |
36.6 |
0.75 |
100.0 |
1.5 |
| 1/070 |
64.3 |
1.6 |
114.3 |
1.8 |
92.8 |
1.6 |
31.4 |
0.80 |
85.7 |
1.6 |
| 1/085 |
52.9 |
1.9 |
94.1 |
2.1 |
76.4 |
1.9 |
25.8 |
0.90 |
70.5 |
1.9 |
| 1/100 |
45.0 |
2.3 |
80.0 |
2.6 |
65.0 |
2.3 |
22.0 |
1.15 |
60.0 |
2.3 |
| 1/120 |
37.5 |
2.8 |
66.6 |
3.2 |
54.1 |
2.8 |
18.3 |
2.40 |
50.0 |
2.8 |
| 1/135 |
33.3 |
3.1 |
59.2 |
3.7 |
48.1 |
3.1 |
16.3 |
1.55 |
44.4 |
3.1 |
| 1/150 |
30.0 |
3.5 |
53.3 |
4.0 |
43.3 |
3.5 |
14.6 |
1.75 |
40.0 |
3.5 |
| 1/170 |
26.4 |
3.9 |
47.0 |
4.4 |
38.2 |
3.9 |
12.9 |
2.1 |
35.2 |
3.9 |
| 1/190 |
23.6 |
4.2 |
42.1 |
4.8 |
34.2 |
4.4 |
11.5 |
2.3 |
31.5 |
4.3 |
41.2 |
| 1/210 |
21.4 |
4.9 |
38.1 |
5.5 |
30.9 |
1.9 |
10.4 |
2.5 |
28.5 |
4.9 |
| 1/240 |
18.7 |
5.1 |
33.3 |
5.7 |
27.1 |
5.1 |
9.1 |
2.6 |
25.0 |
5.1 |
| 1/270 |
16.6 |
5.5 |
29.6 |
5.8 |
24.0 |
5.5 |
8.1 |
2.9 |
22.2 |
5.5 |
| 1/300 |
15.0 |
6 |
26.6 |
6 |
21.6 |
6 |
7.3 |
3.2 |
20.0 |
6 |
| 1/370 |
12.1 |
6 |
21.6 |
6 |
17.5 |
6 |
5.9 |
3.9 |
16.2 |
6 |
| 1/420 |
10.7 |
6 |
19.0 |
6 |
15.4 |
6 |
5.2 |
4.2 |
14.2 |
6 |
| 1/480 |
9.3 |
6 |
16.6 |
6 |
13.5 |
6 |
4.6 |
4.6 |
12.5 |
6 |
| 1/540 |
8.3 |
6 |
14.8 |
6 |
12.0 |
6 |
4.0 |
5.0 |
11.0 |
6 |
| 1/600 |
7.5 |
6 |
13.3 |
6 |
10.8 |
6 |
3.6 |
5.7 |
10.0 |
6 |
| 1/660 |
6.8 |
6 |
12.1 |
6 |
9.8 |
6 |
3.3 |
6 |
9.0 |
6 |
| 1/750 |
6.0 |
6 |
10.6 |
6 |
8.6 |
6 |
2.9 |
6 |
8.0 |
6 |
| 1/830 |
5.4 |
6 |
9.6 |
6 |
7.8 |
6 |
2.6 |
6 |
7.2 |
6 |
| 1/930 |
4.8 |
6 |
8.6 |
6 |
6.9 |
6 |
2.3 |
6 |
6.4 |
6 |
| 1/1040 |
4.3 |
6 |
7.7 |
6 |
6.2 |
6 |
2.1 |
6 |
5.7 |
6 |
| 1/1180 |
3.8 |
6 |
6.7 |
6 |
5.5 |
6 |
1.8 |
6 |
5.0 |
6 |
| 1/1350 |
3.3 |
6 |
5.9 |
6 |
4.8 |
6 |
1.6 |
6 |
4.4 |
6 |
| 1/1500 |
3.0 |
6 |
5.3 |
6 |
4.3 |
6 |
1.4 |
6 |
4.0 |
6 |
| 1/1670 |
2.7 |
6 |
4.8 |
6 |
3.9 |
6 |
1.3 |
6 |
3.6 |
6 |
| 1/1860 |
2.4 |
6 |
4.3 |
6 |
3.5 |
6 |
1.2 |
6 |
3.2 |
6 |
| 1/2070 |
2.1 |
6 |
3.8 |
6 |
3.1 |
6 |
1.0 |
6 |
2.9 |
6 |
| 1/2310 |
1.9 |
6 |
3.4 |
6 |
2.8 |
6 |
0.9 |
6 |
2.6 |
6 |
| 1/2600 |
1.7 |
6 |
3.0 |
6 |
2.5 |
6 |
0.8 |
6 |
2.3 |
6 |
| 1/2920 |
1.5 |
6 |
2.7 |
6 |
2.2 |
6 |
0.7 |
6 |
2.0 |
6 |
| 1/3300 |
1.3 |
6 |
2.4 |
6 |
1.9 |
6 |
0.6 |
6 |
1.8 |
6 |
| 1/3800 |
1.1 |
6 |
2.1 |
6 |
1.7 |
6 |
0.5 |
6 |
1.5 |
6 |
|
| TYPE |
SERIES |
| KGD |

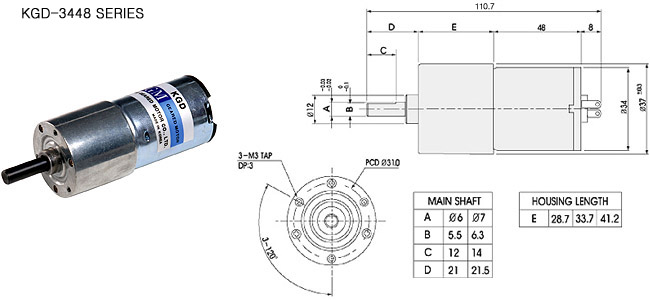

KGD-3448 SERIES | |
|
|
|
|
|
|
|
|
|
 |
|
KM3448A(24VDC) |
KM3448B(24VDC) |
KM3448C(12VDC) |
KM3448D(24VDC) |
KM3448E(24VDC) |
HOUSING
LENGTH |
| RPM |
Kg.Cm |
RPM |
Kg.Cm |
RPM |
Kg.Cm |
RPM |
Kg.Cm |
RPM |
Kg.Cm |
| 1/003 |
1500.0 |
0.19 |
2166.0 |
0.22 |
283.3 |
0.03 |
1500.0 |
0.19 |
666.0 |
0.09 |
28.7 |
| 1/005 |
900.0 |
0.32 |
1300.0 |
0.36 |
170.0 |
0.06 |
900.0 |
0.32 |
400.0 |
0.16 |
| 1/010 |
450.0 |
0.65 |
650.0 |
0.72 |
85.0 |
0.12 |
450.0 |
0.65 |
200.0 |
0.33 |
| 1/015 |
300.0 |
0.87 |
433.1 |
1.0 |
56.6 |
0.16 |
300.0 |
0.87 |
133.3 |
0.44 |
| 1/020 |
225.0 |
1.1 |
325.0 |
1.3 |
42.5 |
0.21 |
225.0 |
1.1 |
100.0 |
0.55 |
| 1/025 |
180.0 |
1.4 |
260.0 |
1.6 |
34.0 |
0.27 |
180.0 |
1.4 |
80.0 |
0.7 |
33.7 |
| 1/030 |
150.0 |
1.7 |
216.6 |
1.9 |
28.3 |
0.33 |
150.0 |
1.7 |
66.6 |
0.8 |
| 1/040 |
112.5 |
2.1 |
162.5 |
2.3 |
21.2 |
0.39 |
112.5 |
2.1 |
50.0 |
1.0 |
| 1/050 |
90.0 |
2.6 |
130.0 |
2.9 |
17.0 |
0.49 |
90.0 |
2.6 |
40.0 |
1.3 |
| 1/060 |
75.0 |
3.1 |
108.3 |
3.5 |
14.1 |
0.59 |
75.0 |
3.1 |
33.3 |
1.5 |
| 1/070 |
64.3 |
3.3 |
92.5 |
3.7 |
12.1 |
0.62 |
64.2 |
3.7 |
28.5 |
1.7 |
| 1/085 |
52.9 |
3.9 |
78.3 |
4.4 |
10.2 |
0.73 |
54.2 |
3.9 |
24.1 |
2.0 |
| 1/100 |
45.0 |
4.7 |
65.0 |
5.3 |
8.5 |
0.90 |
45.0 |
4.7 |
20.0 |
2.3 |
| 1/120 |
37.5 |
5.6 |
54.1 |
6 |
7.1 |
1.0 |
37.5 |
5.6 |
16.6 |
2.8 |
| 1/135 |
33.3 |
6 |
48.1 |
6 |
6.3 |
1.2 |
33.3 |
6 |
14.8 |
3.1 |
| 1/150 |
30.0 |
6 |
43.3 |
6 |
5.6 |
1.3 |
30.0 |
60 |
13.3 |
3.5 |
| 1/170 |
26.4 |
6 |
38.2 |
6 |
5.0 |
1.5 |
26.4 |
6 |
11.7 |
3.8 |
| 1/190 |
23.6 |
6 |
34.2 |
6 |
4.4 |
1.6 |
23.6 |
6 |
10.5 |
4.4 |
41.2 |
| 1/210 |
21.4 |
6 |
30.9 |
6 |
4.0 |
1.8 |
21.4 |
6 |
9.5 |
4.9 |
| 1/240 |
18.7 |
6 |
27.1 |
6 |
3.5 |
1.9 |
18.7 |
6 |
8.3 |
5.1 |
| 1/270 |
16.6 |
6 |
24.0 |
6 |
3.1 |
2.1 |
16.6 |
6 |
7.4 |
6 |
| 1/300 |
15.0 |
6 |
18.5 |
6 |
2.8 |
2.4 |
15.0 |
6 |
6.6 |
6 |
| 1/370 |
12.1 |
6 |
17.5 |
6 |
2.3 |
2.9 |
12.1 |
6 |
5.4 |
6 |
| 1/420 |
10.7 |
6 |
15.4 |
6 |
2.0 |
3.3 |
10.7 |
6 |
4.7 |
6 |
| 1/480 |
9.3 |
6 |
13.5 |
6 |
1.7 |
3.6 |
9.3 |
6 |
4.1 |
6 |
| 1/540 |
8.3 |
6 |
12.0 |
6 |
1.5 |
3.8 |
8.3 |
6 |
3.7 |
6 |
| 1/600 |
7.5 |
6 |
10.8 |
6 |
1.4 |
4.2 |
7.5 |
6 |
3.3 |
6 |
| 1/660 |
6.8 |
6 |
9.8 |
6 |
1.3 |
4.6 |
6.8 |
6 |
3.0 |
6 |
| 1/750 |
6.0 |
6 |
8.6 |
6 |
1.1 |
5.3 |
6.0 |
6 |
2.6 |
6 |
| 1/830 |
5.4 |
6 |
7.8 |
6 |
1.0 |
6 |
5.4 |
6 |
2.4 |
6 |
| 1/930 |
4.8 |
6 |
7.0 |
6 |
0.9 |
6 |
4.8 |
6 |
2.1 |
6 |
| 1/1040 |
4.3 |
6 |
6.2 |
6 |
0.8 |
6 |
4.3 |
6 |
1.9 |
6 |
| 1/1180 |
3.8 |
6 |
5.5 |
6 |
0.70 |
6 |
3.8 |
6 |
1.7 |
6 |
| 1/1350 |
3.3 |
6 |
4.8 |
6 |
0.60 |
6 |
3.3 |
6 |
1.5 |
6 |
| 1/1500 |
3.0 |
6 |
4.3 |
6 |
0.55 |
6 |
3.0 |
6 |
1.3 |
6 |
| 1/1670 |
2.7 |
6 |
3.9 |
6 |
0.50 |
6 |
2.7 |
6 |
1.2 |
6 |
| 1/1860 |
2.4 |
6 |
3.5 |
6 |
0.45 |
6 |
2.4 |
6 |
1.0 |
6 |
| 1/2070 |
2.1 |
6 |
3.1 |
6 |
0.40 |
6 |
2.1 |
6 |
0.96 |
6 |
| 1/2310 |
1.9 |
6 |
2.8 |
6 |
0.36 |
6 |
1.9 |
6 |
0.86 |
6 |
| 1/2600 |
1.7 |
6 |
2.5 |
6 |
0.32 |
6 |
1.7 |
6 |
0.76 |
6 |
| 1/2920 |
1.5 |
6 |
2.2 |
6 |
0.29 |
6 |
1.5 |
6 |
0.68 |
6 |
| 1/3300 |
1.3 |
6 |
1.96 |
6 |
0.25 |
6 |
1.3 |
6 |
0.60 |
6 |
| 1/3800 |
1.1 |
6 |
1.71 |
6 |
0.22 |
6 |
1.1 |
6 |
0.52 |
6 | |
|
|
|
|
|
|
