제품명 : KGE-3429 SERIES |
| |
|
| |
|
| |
|
|
|
| |
|
|
| TYPE |
SERIES |
| KGE |

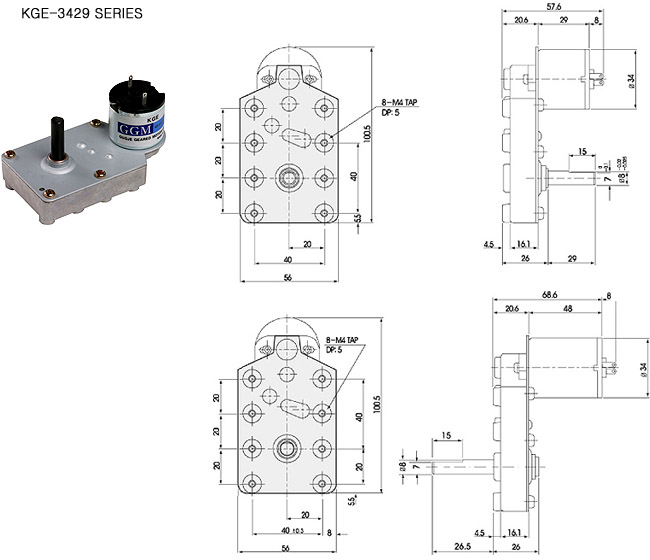

KGE-3429 SERIES | |
|
|
|
|
|
|
|
|
 |
 |
 |
KM3429A(24VDC) |
KM3429B(24VDC) |
KM3429C(12VDC) |
KM3429D(24VDC) |
KM3429E(24VDC) |
| RPM |
Kg.Cm |
RPM |
Kg.Cm |
RPM |
Kg.Cm |
RPM |
Kg.Cm |
RPM |
Kg.Cm |
| 1/022 |
204.5 |
0.6 |
363.6 |
0.7 |
295.4 |
0.6 |
100.0 |
0.3 |
272.7 |
0.6 |
| 1/034 |
130.3 |
1.0 |
235.2 |
1.1 |
191.1 |
1.0 |
64.7 |
0.5 |
176.4 |
1.0 |
| 1/043 |
104.6 |
1.3 |
186.0 |
1.4 |
151.1 |
1.3 |
54.1 |
0.6 |
139.5 |
1.3 |
| 1/050 |
90.0 |
1.5 |
160.0 |
1.6 |
130.0 |
1.5 |
44.0 |
0.7 |
120.0 |
1.5 |
| 1/062 |
72.5 |
1.8 |
129.0 |
2.0 |
104.8 |
1.8 |
35.5 |
0.9 |
96.7 |
1.8 |
| 1/068 |
64.4 |
1.9 |
117.6 |
2.1 |
92.8 |
1.9 |
32.3 |
1.0 |
88.2 |
1.9 |
| 1/083 |
54.2 |
2.4 |
96.3 |
2.7 |
78.3 |
2.4 |
26.5 |
1.2 |
72.3 |
2.4 |
| 1/105 |
42.8 |
3.0 |
76.2 |
3.4 |
61.9 |
3.0 |
20.9 |
1.5 |
57.1 |
3.0 |
| 1/116 |
38.7 |
3.4 |
69.0 |
3.8 |
56.0 |
3.4 |
19.0 |
1.7 |
51.7 |
3.4 |
| 1/162 |
27.7 |
4.2 |
49.3 |
4.8 |
40.1 |
4.2 |
13.6 |
2.1 |
37.0 |
4.2 |
| 1/182 |
25.0 |
4.8 |
43.9 |
5.4 |
36.1 |
4.8 |
12.0 |
2.4 |
32.9 |
4.8 |
| 1/204 |
22.0 |
5.4 |
39.2 |
6.0 |
31.8 |
5.4 |
10.8 |
2.7 |
29.4 |
5.4 |
| 1/240 |
18.7 |
6.3 |
33.3 |
7.1 |
27.0 |
6.3 |
9.1 |
3.1 |
25.0 |
6.3 |
| 1/308 |
14.6 |
8.1 |
26.0 |
9.1 |
21.1 |
8.1 |
8.1 |
4.0 |
19.5 |
8.1 |
| 1/350 |
12.5 |
9.5 |
22.8 |
11.9 |
18.0 |
9.5 |
6.3 |
4.8 |
17.1 |
9.5 |
| 1/452 |
9.9 |
11.9 |
17.7 |
13.4 |
14.4 |
11.9 |
4.8 |
5.9 |
13.3 |
11.9 |
| 1/615 |
7.3 |
16.2 |
13.0 |
18.2 |
10.5 |
16.2 |
3.6 |
8.1 |
9.7 |
16.2 |
| 1/687 |
6.5 |
18.0 |
11.6 |
20 |
9.5 |
18.0 |
3.2 |
9.0 |
8.7 |
18.0 |
|
| TYPE |
SERIES |
| KGE |

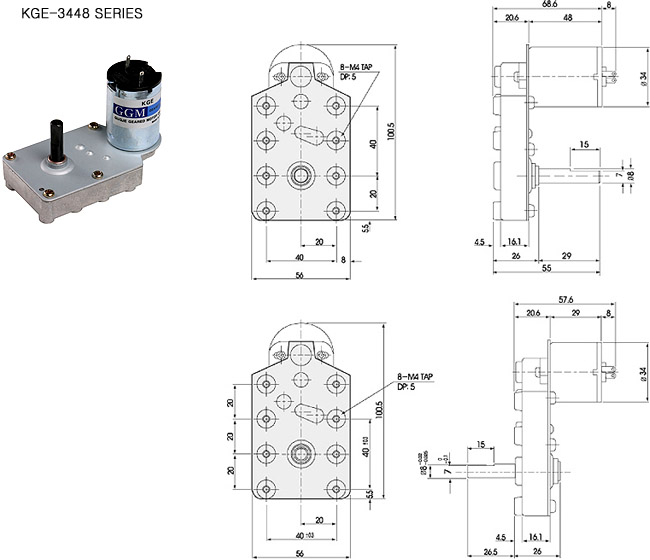

KGE-3448 SERIES | |
|
|
|
|
|
|
|
|
|
 |
|
KM3448A(24VDC) |
KM3448B(24VDC) |
KM3448C(12VDC) |
KM3448D(24VDC) |
KM3448E(24VDC) |
| RPM |
Kg.Cm |
RPM |
Kg.Cm |
RPM |
Kg.Cm |
RPM |
Kg.Cm |
RPM |
Kg.Cm |
| 1/022 |
204.5 |
1.3 |
295.4 |
1.4 |
38.6 |
0.20 |
204.5 |
1.3 |
90.9 |
0.6 |
| 1/034 |
132.3 |
2.0 |
191.1 |
2.2 |
25.0 |
0.30 |
132.3 |
2.0 |
58.8 |
0.9 |
| 1/043 |
104.6 |
2.5 |
151.1 |
2.8 |
19.1 |
0.47 |
104.6 |
2.5 |
46.5 |
1.2 |
| 1/050 |
90.0 |
2.9 |
130.0 |
3.3 |
17.0 |
0.50 |
90.0 |
2.9 |
40.0 |
1.4 |
| 1/062 |
72.5 |
3.6 |
104.8 |
4.0 |
13.7 |
0.60 |
72.5 |
3.6 |
32.2 |
1.8 |
| 1/068 |
64.4 |
40 |
92.8 |
4.5 |
12.1 |
0.70 |
64.3 |
4.1 |
28.5 |
2.1 |
| 1/083 |
54.2 |
4.8 |
78.3 |
5.4 |
10.2 |
0.90 |
54.2 |
4.8 |
24.1 |
2.4 |
| 1/105 |
42.8 |
6.1 |
61.9 |
6.9 |
8.1 |
1.1 |
42.8 |
6.1 |
19.0 |
3.0 |
| 1/116 |
38.7 |
6.7 |
56.0 |
7.6 |
7.3 |
1.2 |
38.8 |
6.7 |
17.2 |
3.4 |
| 1/162 |
27.7 |
8.5 |
40.1 |
9.5 |
5.2 |
1.6 |
27.7 |
8.5 |
12.3 |
4.2 |
| 1/182 |
25.0 |
9.2 |
36.1 |
10.8 |
4.7 |
1.8 |
25.0 |
9.2 |
10.0 |
4.6 |
| 1/204 |
22.0 |
10.7 |
31.8 |
12.0 |
4.1 |
2.0 |
22.0 |
10.7 |
9.8 |
5.3 |
| 1/240 |
18.7 |
12.6 |
27.1 |
14.1 |
3.5 |
2.3 |
18.7 |
12.6 |
8.3 |
6.3 |
| 1/308 |
14.6 |
16.1 |
21.1 |
18.1 |
2.7 |
3.0 |
14.6 |
16.1 |
6.5 |
8.1 |
| 1/350 |
12.5 |
20 |
18.0 |
20 |
2.3 |
3.6 |
12.5 |
20 |
5.5 |
10.9 |
| 1/452 |
9.9 |
20 |
14.4 |
20 |
1.9 |
4.4 |
9.9 |
20 |
4.4 |
11.8 |
| 1/615 |
7.3 |
20 |
10.5 |
20 |
1.4 |
6.0 |
7.3 |
20 |
3.2 |
16.1 |
| 1/687 |
6.5 |
20 |
9.4 |
20 |
1.2 |
6.4 |
6.5 |
20 |
2.9 |
18.0 |
| |
|
|
|
|
|
