  Á¦Ç°¸í : KGF-3429 SERIES



CADÆÄÀÏ ´Ù¿î·Îµå(µµ¸é)



TYPE SERIES

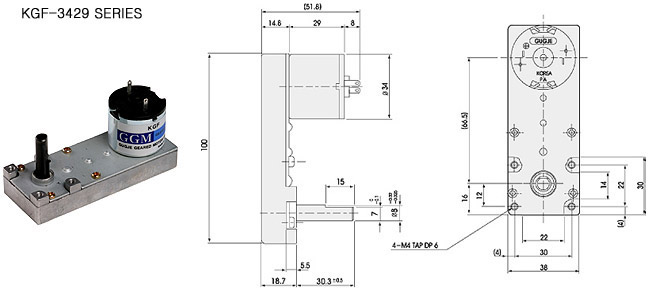

KGF KGF-3429 SERIES

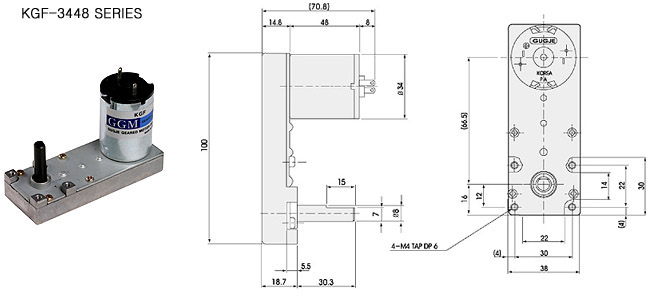

KGF-3448 SERIES









KM3429A(24VDC) KM3429B(24VDC) KM3429C(12VDC) KM3429D(24VDC) KM3429E(24VDC)
RPM Kg.Cm RPM Kg.Cm RPM Kg.Cm RPM Kg.Cm RPM Kg.Cm
1/057 78.9 1.34 140.3 1.51 114.0 1.34 38.6 0.7 105.2 1.34
1/100 45.0 2.36 80.0 2.65 65.0 2.36 22.0 1.2 60.0 2.36
1/130 34.6 3.0 61.5 3.4 50.0 3.0 16.9 1.5 46.1 3.0
1/188 23.9 4.4 42.5 5.0 34.5 4.4 11.7 202 31.9 4.4
1/255 17.6 6.0 31.3 3.7 25.5 6.0 8.6 3.0 23.5 6.0

KM3448A(24VDC) KM3448B(24VDC) KM3448C(12VDC) KM3448D(24VDC) KM3448E(24VDC)
RPM Kg.Cm RPM Kg.Cm RPM Kg.Cm RPM Kg.Cm RPM Kg.Cm
1/057 78.9 2.7 114.0

3.0

14.9 0.5 78.9 2.7 35.1 1.4
1/100 45.0 4.7 65.0 5.3 8.5 0.9 45.0 4.7 20.0 2.4
1/130 34.6 6.1 50.0 6.9 6.5 1.1 34.6 6.1 15.4 3.0
1/188 23.9 8.8 34.5 10 4.5 1.7 23.9 8.8 10.6 4.4
1/255 17.6 10 25.5 10 3.3 2.2 17.6 10 7.8 6.0
