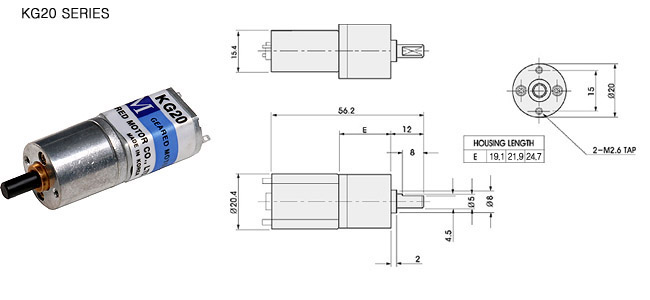

제품명 : KG20 SERIES
CAD파일 다운로드(도면)
TYPE
SERIES
KG20
KG20 SERIES
OUTPUT
(W)
RATED
START
TORQUE(Kg·Cm)
VOLTAGE(V)
FREQ(Hz)
INPUT(W)
CURRENT(A)
TARQ(Kg·Cm)
SPEED(RPM)
12DC
0.96
0.16
15
5500
75
24DC
1.00
0.21
15
5100
75
GEAR
1/3
1/5
1/10
1/15
1/20
1/25
1/30
1/40
1/50
1/60
1/70
1/80
1/90
1/100
1/120
SPEED(RPM)
1833.3
1100.0
550.0
366.6
275.0
220.0
183.3
137.5
110.0
91.7
78.6
68.7
61.1
55.0
45.8
TORQ(Kg·Cm)
0.04
0.07
0.13
0.19
0.24
0.30
0.36
0.48
0.61
0.69
0.81
0.92
1.04
1.15
1.38
HOUSING LENGTH
19.1
19.1
19.1
19.1
19.1
19.1
19.1
19.1
19.1
21.9
21.9
21.9
21.9
21.9
21.9
GEAR
1/135
1/150
1/180
1/200
1/240
1/280
1/310
1/370
1/420
1/460
1/500
1/550
1/600
1/650
1/700
SPEED(RPM)
40.7
36.6
30.5
27.5
22.9
19.6
17.7
14.8
13.1
11.9
11.0
10.0
9.1
8.4
7.8
TORQ(Kg·Cm)
1.56
1.64
1.97
2.19
2.63
3
3
3
3
3
3
3
3
3
3
HOUSING LENGTH
21.9
21.9
21.9
21.9
21.9
21.9
21.9
21.9
24.7
24.7
24.7
24.7
24.7
24.7
24.7
GEAR
1/770
1/850
1/940
1/1040
1/1170
1/1270
1/1380
1/1500
1/1640
1/1790
1/1950
1/2140
1/2350
1/2600
1/2880
SPEED(RPM)
7.1
6.5
5.8
5.3
4.7
4.3
4.0
3.6
3.3
3.1
2.8
2.6
2.3
2.1
1.9
TORQ(Kg·Cm)
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
HOUSING LENGTH
24.7
24.7
24.7
24.7
24.7
24.7
24.7
24.7
24.7
24.7
24.7
24.7
24.7
24.7
24.7
GEAR
1/3
1/5
1/10
1/15
1/20
1/25
1/30
1/40
1/50
1/60
1/70
1/80
1/90
1/100
1/120
SPEED(RPM)
1700.0
1020.0
510.0
340.0
255.0
204.0
170.0
127.5
102.0
85.0
72.8
63.7
56.6
51.0
45.5
TORQ(Kg·Cm)
0.04
0.07
0.13
0.19
0.24
0.30
0.36
0.48
0.61
0.69
0.81
0.92
1.04
1.15
1.38
HOUSING LENGTH
19.1
19.1
19.1
19.1
19.1
19.1
19.1
19.1
19.1
21.9
21.9
21.9
21.9
21.9
21.9
GEAR
1/135
1/150
1/180
1/200
1/240
1/280
1/310
1/370
1/420
1/460
1/500
1/550
1/600
1/650
1/700
SPEED(RPM)
37.8
34.0
28.3
25.5
21.2
18.2
16.4
13.8
12.1
11.1
10.2
9.3
8.5
7.8
7.3
TORQ(Kg·Cm)
1.56
1.64
1.97
2.19
2.63
3
3
3
3
3
3
3
3
3
3
HOUSING LENGTH
21.9
21.9
21.9
21.9
21.9
21.9
21.9
21.9
24.7
24.7
24.7
24.7
24.7
24.7
24.7
GEAR
1/770
1/850
1/940
1/1040
1/1170
1/1270
1/1380
1/1500
1/1640
1/1790
1/1950
1/2140
1/1350
1/2600
1/2880
SPEED(RPM)
6.6
6.0
5.4
4.9
4.3
4.0
3.7
3.4
3.1
2.8
2.6
2.4
2.2
1.9
1.8
TORQ(Kg·Cm)
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
HOUSING LENGTH
24.7
24.7
24.7
24.7
24.7
24.7
24.7
24.7
24.7
24.7
24.7
24.7
24.7
24.7
24.7
