OUTPUT (W)	RATED				START TORQUE(Kg·Cm)
VOLTAGE(V)	FREQ(Hz)		INPUT(W)	CURRENT(A)	TARQ(Kg·Cm)	SPEED(RPM)
12DC		0.96		0.20	20	5100	140
24DC		0.21		0.16	20	5100	140

GEAR	1/860	1/960	1/1050	1/1150	1/1260	1/1380	1/1400	1/1520	1/1680	1/1850	1/2050	1/2250	1/2550
SPEED(RPM)	5.9	5.3	4.8	4.4	4.0	3.7	3.6	3.3	3.0	2.7	2.5	2.2	2.0
TORQ(Kg·Cm)	4	4	4	4	4	4	4	4	4	4	4	4	4

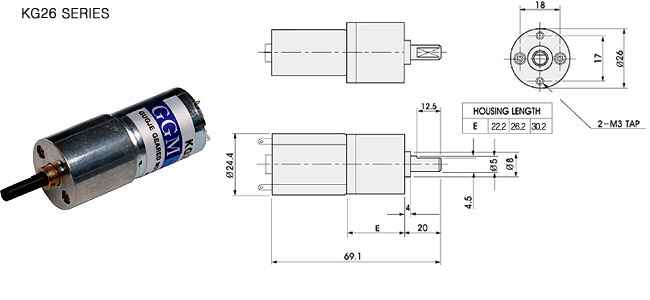

HOUSING LENGTH	30.2	30.2	30.2	30.2	30.2	30.2	30.2	30.2	30.2	30.2	30.2	30.2	30.2

GEAR	1/3	1/5	1/10	1/15	1/20	1/25	1/30	1/40	1/50	1/60	1/70	1/80	1/90	1/100	1/120
SPEED(RPM)	1700.0	1020.0	510.0	340.0	255.0	204.0	170.0	127.5	102.0	85.0	72.8	63.7	56.6	51.0	42.5
TORQ(Kg·Cm)	0.05	0.09	0.17	0.26	0.32	0.40	0.48	0.65	0.81	0.92	1.08	1.23	1.38	1.54	1.85
HOUSING LENGTH	22.2	22.2	22.2	22.2	22.2	22.2	22.2	22.2	22.2	26.2	26.2	26.2	26.2	26.2	26.2

GEAR	1/135	1/150	1/175	1/200	1/240	1/270	1/300	1/360	1/400	1/450	1/500	1/570	1/630	1/700	1/770
SPEED(RPM)	37.8	34	29.1	25.5	21.2	18.9	17.0	14.1	12.7	11.3	10.2	8.9	8.1	7.3	6.6
TORQ(Kg·Cm)	2.08	2.19	2.55	2.92	3.50	3.94	4	4	4	4	4	4	4	4	4
HOUSING LENGTH	26.2	26.2	26.2	26.2	26.2	26.2	26.2	30.2	30.2	30.2	30.2	30.2	30.2	30.2	30.2

GEAR	1/860	1/960	1/1050	1/1150	1/1260	1/1400	1/1520	1/1680	1/1850	1/2050	1/2250	1/2550
SPEED(RPM)	5.9	5.3	4.8	4.4	4.0	3.6	3.3	3.0	2.7	2.5	2.2	2.0
TORQ(Kg·Cm)	4	4	4	4	4	4	4	4	4	4	4	4
HOUSING LENGTH	30.2	30.2	30.2	30.2	30.2	30.2	30.2	30.2	30.2	30.2	30.2	30.2
