제품명 : KG50-3429 SERIES |
| |
|
| |
|
| |
|
|
|
| |
|
|
| TYPE |
SERIES |
| KG50 |

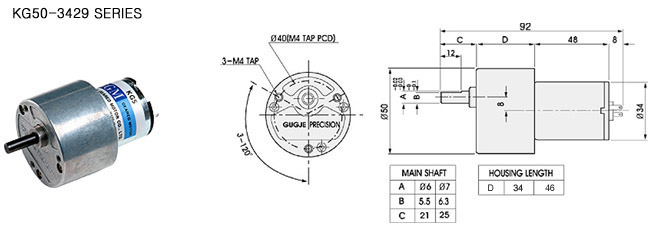

KG50-3429 SERIES | |
|
|
|
|
|
|
|
|
 |
 |
 |
KM3429A(24VDC) |
KM3429B(24VDC) |
KM3429C(12VDC) |
KM3429D(24VDC) |
KM3429E(24VDC) |
HOUSING
LENGTH |
| RPM |
Kg.Cm |
RPM |
Kg.Cm |
RPM |
Kg.Cm |
RPM |
Kg.Cm |
RPM |
Kg.Cm |
| 1/003 |
1500.0 |
0.10 |
2666.7 |
0.11 |
2166.7 |
0.10 |
733.0 |
0.05 |
2000.0 |
0.10 |
34 |
| 1/005 |
900.0 |
0.16 |
1600.0 |
0.18 |
1300.0 |
0.16 |
440.0 |
0.08 |
1200.0 |
0.16 |
| 1/010 |
450.0 |
0.32 |
800.0 |
0.36 |
650.0 |
0.32 |
220.0 |
0.16 |
600.0 |
0.32 |
| 1/015 |
300.0 |
0.44 |
533.3 |
0.49 |
433.3 |
0.44 |
146.6 |
0.22 |
400.0 |
0.44 |
| 1/020 |
225.0 |
0.58 |
400.0 |
0.66 |
325.0 |
0.58 |
110.0 |
0.29 |
300.0 |
0.58 |
| 1/025 |
180.0 |
0.73 |
320.0 |
0.82 |
260.0 |
0.73 |
88.0 |
0.36 |
240.0 |
0.73 |
| 1/030 |
150.0 |
1.87 |
266.6 |
0.98 |
216.6 |
0.87 |
73.3 |
0.44 |
200.0 |
0.87 |
| 1/040 |
112.5 |
1.17 |
200.0 |
1.31 |
162.5 |
1.17 |
55.0 |
0.58 |
150.0 |
1.17 |
| 1/050 |
90.0 |
1.31 |
160.0 |
1.48 |
130.0 |
1.31 |
44.0 |
0.66 |
120.0 |
1.31 |
| 1/060 |
75.0 |
1.57 |
133.3 |
1.77 |
108.3 |
1.57 |
36.6 |
0.79 |
100.0 |
1.57 |
46 |
| 1/075 |
60.0 |
1.97 |
106.7 |
2.21 |
86.7 |
1.97 |
29.3 |
0.98 |
80.0 |
1.97 |
| 1/090 |
50.0 |
2.10 |
88.9 |
2.40 |
72.2 |
2.10 |
24.4 |
10.5 |
66.6 |
2.10 |
| 1/100 |
45.0 |
2.62 |
80.0 |
2.95 |
65.0 |
2.62 |
22.0 |
1.31 |
60.0 |
2.62 |
| 1/120 |
37.5 |
3.15 |
66.6 |
3.54 |
54.2 |
3.15 |
18.3 |
1.57 |
50.0 |
3.15 |
| 1/150 |
30.0 |
3.54 |
53.3 |
3.98 |
43.3 |
3.5 |
14.7 |
1.77 |
40.0 |
3.54 |
| 1/160 |
27.7 |
4.00 |
4.93 |
4.40 |
40.1 |
4.00 |
13.6 |
1.95 |
37.0 |
3.90 |
| 1/180 |
25.0 |
4.25 |
44.4 |
4.78 |
36.1 |
4.5 |
12.2 |
2.12 |
33.3 |
4.25 |
| 1/200 |
22.5 |
4.72 |
40.0 |
5.31 |
32.5 |
4.72 |
11.0 |
2.36 |
30.0 |
4.72 |
| 1/210 |
21.4 |
4.96 |
38.1 |
5.58 |
31.0 |
1.96 |
10.5 |
2.48 |
28.6 |
4.96 |
| 1/240 |
18.8 |
5.66 |
33.3 |
6.37 |
27.1 |
5.66 |
9.2 |
2.83 |
25.0 |
5.66 |
| 1/250 |
18.0 |
5.90 |
32.0 |
6.64 |
26.0 |
5.90 |
8.8 |
2.95 |
24.0 |
5.90 |
| 1/270 |
16.7 |
6.37 |
29.6 |
7.17 |
24.1 |
6.37 |
8.1 |
3.19 |
22.2 |
6.37 |
| 1/300 |
15.0 |
7.08 |
26.7 |
7.97 |
21.7 |
7.08 |
7.3 |
3.54 |
20.0 |
7.08 |
| 1/360 |
12.5 |
8.50 |
22.2 |
9.56 |
18.1 |
8.50 |
6.1 |
4.24 |
16.7 |
8.50 |
| 1/400 |
11.3 |
8.48 |
20.0 |
9.54 |
16.3 |
8.48 |
5.5 |
4.24 |
151.0 |
8.48 |
| 1/500 |
9.0 |
10 |
16.0 |
10 |
13.0 |
10 |
4.4 |
5.30 |
12.0 |
10 |
| 1/600 |
7.5 |
10 |
13.3 |
10 |
10.8 |
10 |
3.7 |
6.36 |
10.0 |
10 |
| 1/750 |
6.0 |
10 |
10.7 |
10 |
8.7 |
10 |
2.9 |
7.95 |
8.0 |
10 |
| 1/900 |
5.0 |
10 |
8.9 |
10 |
7.2 |
10 |
2.4 |
9.54 |
6.7 |
10 |
| 1/1080 |
4.2 |
10 |
7.4 |
10 |
6.0 |
10 |
2.0 |
10 |
5.5 |
10 |
| 1/1250 |
3.6 |
10 |
6.4 |
10 |
5.2 |
10 |
1.7 |
10 |
4.8 |
10 |
| 1/1500 |
3.0 |
10 |
5.3 |
10 |
4.3 |
10 |
1.5 |
10 |
4.0 |
10 |
| 1/1800 |
2.9 |
10 |
5.2 |
10 |
4.1 |
10 |
1.4 |
10 |
3.9 |
10 |
| 1/2250 |
2.0 |
10 |
3.5 |
10 |
2.9 |
10 |
1.0 |
10 |
2.6 |
10 |
| 1/2700 |
1.7 |
10 |
3.0 |
10 |
2.4 |
10 |
0.8 |
10 |
2.2 |
10 |
| 1/3240 |
1.4 |
10 |
2.4 |
10 |
2.0 |
10 |
0.7 |
10 |
1.8 |
10 |
|
| TYPE |
SERIES |
| KG50 |

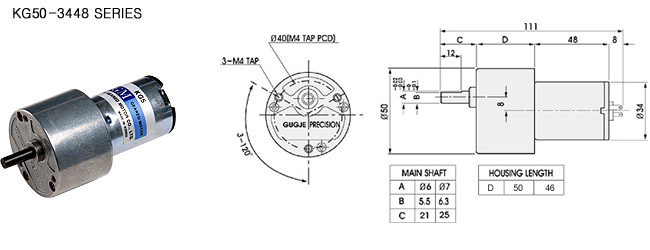

KG50-3448 SERIES | |
|
|
|
|
|
|
|
|
|
 |
|
KM3448A(24VDC) |
KM3448B(24VDC) |
KM3448C(12VDC) |
KM3448D(24VDC) |
KM3448E(24VDC) |
HOUSING
LENGTH |
| RPM |
Kg.Cm |
RPM |
Kg.Cm |
RPM |
Kg.Cm |
RPM |
Kg.Cm |
RPM |
Kg.Cm |
| 1/003 |
1500.0 |
0.19 |
2166.7 |
0.22 |
283.3 |
0.04 |
1500.0 |
0.19 |
666.7 |
0.10 |
34 |
| 1/005 |
900.0 |
0.32 |
1300.0 |
0.36 |
170.0 |
0.06 |
900.0 |
0.32 |
400.0 |
0.16 |
| 1/010 |
450.0 |
0.65 |
650.0 |
0.73 |
85.0 |
0.12 |
450.0 |
0.65 |
200.0 |
0.32 |
| 1/015 |
300.0 |
0.87 |
433.3 |
0.87 |
56.7 |
0.16 |
300.0 |
0.87 |
133.3 |
0.44 |
| 1/020 |
225.0 |
1.17 |
325.0 |
1.17 |
42.5 |
0.22 |
225.0 |
1.17 |
100.0 |
0.58 |
| 1/025 |
150.0 |
1.46 |
260.0 |
1.46 |
34.0 |
0.27 |
180.0 |
1.46 |
80.0 |
0.73 |
| 1/030 |
150.0 |
1.75 |
216.7 |
1.75 |
28.3 |
0.33 |
15.0. |
1.75 |
66.7 |
0.87 |
| 1/040 |
112.5 |
2.33 |
162.5 |
2.33 |
21.3 |
0.44 |
112.5 |
2.33 |
50.0 |
1.17 |
| 1/050 |
90.0 |
2.62 |
130.0 |
2.95 |
17.0 |
0.49 |
90.0 |
2.62 |
40.0 |
1.31 |
| 1/060 |
75.0 |
3.15 |
108.3 |
3.54 |
14.2 |
0.59 |
75.0 |
3015 |
33.3 |
1.57 |
| 1/075 |
60.0 |
3.94 |
86.7 |
4.43 |
11.3 |
0.74 |
60.0 |
3.94 |
26.7 |
1.97 |
| 1/090 |
50.0 |
4.20 |
72.2 |
4.49 |
9.4 |
0.80 |
50.0 |
4.42 |
22.2 |
2.10 |
| 1/100 |
45.0 |
5.25 |
65.0 |
5.90 |
8.5 |
0.98 |
45.0 |
5.25 |
20.0 |
2.62 |
| 1/120 |
37.5 |
6.30 |
54.2 |
7.08 |
7.1 |
1.18 |
37.5 |
6.30 |
16.7 |
3.15 |
| 1/150 |
30.0 |
7.08 |
43.3 |
7.97 |
5.7 |
1.33 |
30.0 |
7.08 |
13.3 |
3.54 |
46 |
| 1/160 |
27.7 |
8.00 |
40.1 |
8.84 |
5.2 |
1.42 |
27.7 |
7.78 |
12.5 |
3.96 |
| 1/180 |
25.0 |
8.50 |
36.1 |
9.56 |
4.7 |
1.59 |
25.0 |
8.50 |
11.1 |
4.25 |
| 1/200 |
22.5 |
9.44 |
32.5 |
10 |
4.3 |
1.77 |
22.5 |
9.44 |
10.0 |
4.72 |
| 1/210 |
21.4 |
9.91 |
31.0 |
10 |
4.0 |
1.86 |
21.4 |
9.91 |
9.5 |
4.96 |
| 1/240 |
18.8 |
10 |
27.1 |
10 |
3.5 |
2.12 |
18.8 |
10 |
8.3 |
5.66 |
| 1/250 |
18.0 |
10 |
26.0 |
10 |
3.4 |
2.21 |
18.0 |
10 |
8.0 |
5.90 |
| 1/270 |
16.7 |
10 |
24.1 |
10 |
3.1 |
2.39 |
16.7 |
10 |
7.4 |
6.37 |
| 1/300 |
15.0 |
10 |
21.7 |
10 |
2.8 |
2.66 |
15.0 |
1 |
6.7 |
7.08 |
| 1/360 |
12.5 |
10 |
18.1 |
10 |
2.4 |
3.19 |
12.5 |
10 |
5.6 |
8.50 |
| 1/400 |
11.3 |
10 |
16.3 |
10 |
2.1 |
3.18 |
11.3 |
10 |
5.0 |
8.48 |
| 1/500 |
9.0 |
10 |
13.0 |
10 |
1.7 |
3.98 |
9.0 |
10 |
4.0 |
10 |
| 1/600 |
7.5 |
10 |
10.8 |
10 |
1.4 |
4.77 |
7.5 |
10 |
3.3 |
10 |
| 1/750 |
6.0 |
10 |
8.7 |
10 |
1.1 |
5.96 |
6.0 |
10 |
2.7 |
10 |
| 1/900 |
5.0 |
10 |
7.2 |
10 |
0.9 |
7.16 |
2.4 |
10 |
2.2 |
10 |
| 1/1080 |
4.2 |
10 |
6.0 |
10 |
0.8 |
8.90 |
2.0 |
10 |
1.8 |
10 |
| 1/1250 |
3.6 |
10 |
5.2 |
10 |
0.7 |
9.93 |
1.7 |
10 |
1.6 |
10 |
| 1/1500 |
3.0 |
10 |
4.3 |
10 |
0.6 |
10 |
1.5 |
10 |
1.3 |
10 |
| 1/1800 |
2.9 |
10 |
4.1 |
10 |
0.5 |
10 |
1.4 |
10 |
1.1 |
10 |
| 1/2250 |
2.0 |
10 |
2.9 |
10 |
0.4 |
10 |
1.0 |
10 |
0.9 |
10 |
| 1/2700 |
1.7 |
10 |
2.4 |
10 |
0.3 |
10 |
0.9 |
10 |
0.7 |
10 |
| 1/3240 |
1.4 |
10 |
2.0 |
10 |
0.2 |
10 |
0.8 |
10 |
0.6 |
10 |
|
|
|
|
|
|
