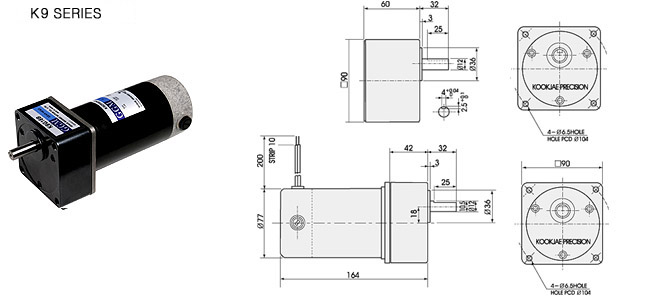

제품명 : K9D(DC) |
| |
|
| |
|
| |
|
|
|
| |
|
|
| TYPE |
SERIES |
K9D(DC)
|
K9 SERIES | |
|
|
|
|
|
|
|
|
 |
 |
 |
OUTPUT
(W) |
RATED |
START
TORQUE(Kg·Cm) |
| VOLTAGE(V) |
FREQ(Hz) |
INPUT(W) |
CURRENT(A) |
TARQ(Kg·Cm) |
SPEED(RPM) |
| 24DC |
|
40 |
|
2.0 |
1.30 |
3,000 |
12.5 |
| 90DC |
|
40 |
|
0.8 |
1.30 |
3,000 |
12.5 |
| GEAR |
1/3 |
1/3.6 |
1/5 |
1/6 |
1/7.5 |
1/9 |
1/10 |
1/12.5 |
1/15 |
1/18 |
1/20 |
1/25 |
1/30 |
1/36 |
1/40 |
| SPEED(RPM) |
1000 |
833.3 |
600 |
500 |
400 |
333.3 |
300 |
240 |
200 |
166.6 |
150 |
120 |
100 |
83.3 |
75 |
| TORQ(Kg·Cm) |
3.16 |
3.80 |
5.27 |
6.32 |
7.90 |
9.48 |
10.53 |
13.16 |
15.80 |
18.95 |
18.98 |
23.73 |
28.47 |
34.16 |
37.96 |
| GEAR |
1/50 |
1/60 |
1/75 |
1/80 |
1/90 |
1/100 |
1/120 |
1/150 |
1/180 |
|
|
|
|
|
|
| SPEED(RPM) |
60 |
50 |
40 |
37.5 |
33.3 |
30 |
25 |
20 |
16.6 |
|
|
|
|
|
|
| TORQ(Kg·Cm) |
42.90 |
51.48 |
64.35 |
68.64 |
77.22 |
85.8 |
100 |
100 |
100 |
|
|
|
|
|
|
| GEAR |
1/3 |
1/3.6 |
1/5 |
1/6 |
1/7.5 |
1/9 |
1/10 |
1/12.5 |
1/15 |
1/18 |
1/20 |
1/25 |
1/30 |
1/36 |
1/40 |
| SPEED(RPM) |
1000 |
833.3 |
600 |
500 |
400 |
333.3 |
300 |
240 |
200 |
166.6 |
150 |
120 |
100 |
83.3 |
75 |
| TORQ(Kg·Cm) |
3.16 |
3.80 |
5.27 |
6.32 |
7.90 |
9.48 |
1.53 |
13.16 |
15.80 |
18.95 |
18.98 |
23.73 |
28.47 |
34.16 |
37.96 |
| GEAR |
1/50 |
1/60 |
1/75 |
1/80 |
1/90 |
1/100 |
1/120 |
1/150 |
1/180 |
|
|
|
|
|
|
| SPEED(RPM) |
60 |
50 |
40 |
37.5 |
33.3 |
30 |
25 |
20 |
16.6 |
|
|
|
|
|
|
| TORQ(Kg·Cm) |
42.90 |
51.48 |
64.35 |
68.64 |
77.22 |
85.8 |
100 |
100 |
100 |
|
|
|
|
|
| |
|
|
|
|
|
|
