제품명 : KGY SERIES(DC)

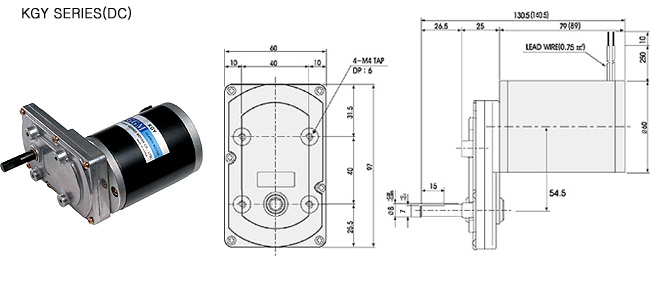

CAD파일 다운로드(도면)
TYPE
SERIES
KGY
KGY SERIES(DC)
OUTPUT
(W)
RATED
START
TORQUE(Kg·Cm)
VOLTAGE(V)
FREQ(Hz)
INPUT(W)
CURRENT(A)
TARQ(Kg·Cm)
SPEED(RPM)
12DC
5
0.6
0.17
3,000
1.6
24DC
10
0.6
0.33
3,000
3.2
12DC
15
1.8
0.50
3,000
4.9
24DC
20
1.2
0.66
3,000
6.5
90DC
10
0.2
0.33
3,000
3.2
GEAR
1/10
1/15
1/21
1/27
1/36
1/43
1/47
1/55
1/60
1/75
1/86
1/100
1/115
1/126
1/131
SPEED(RPM)
300.0
200.0
142.8
111.1
83.3
69.7
63.8
54.5
50.0
40.0
34.9
30.0
26.1
23.8
22.9
TORQ(Kg·Cm)
1.4
2.0
2.9
3.7
4.9
5.9
6.4
7.5
8.2
10.3
11.8
13.7
15.8
17.3
18
GEAR
1/154
1/172
1/215
1/300
1/380
1/408
1/532
1/673
1/825
SPEED(RPM)
19.5
17.4
13.9
10.0
7.9
7.3
5.6
4.4
3.6
TORQ(Kg·Cm)
20
20
20
20
20
20
20
20
20
GEAR
1/10
1/15
1/21
1/27
1/36
1/43
1/47
1/55
1/60
1/75
1/86
1/100
1/115
1/126
1/131
SPEED(RPM)
300.0
200.0
142.8
111.1
83.3
69.7
63.8
54.5
50.0
40.0
34.9
30.0
26.1
23.8
22.9
TORQ(Kg·Cm)
2.8
4
5.8
7.4
9.8
11.8
12.8
15
16.4
20
20
20
20
20
20
GEAR
1/154
1/172
1/215
1/300
1/380
1/408
1/532
1/673
1/825
SPEED(RPM)
19.5
17.4
13.9
10.0
7.9
7.3
5.6
4.4
3.6
TORQ(Kg·Cm)
20
20
20
20
20
20
20
20
20
GEAR
1/10
1/15
1/21
1/27
1/36
1/43
1/47
1/55
1/60
1/75
1/86
1/100
1/115
1/126
1/131
SPEED(RPM)
300.0
200.0
142.8
111.1
83.3
69.7
63.8
54.5
50.0
40.0
34.9
30.0
26.1
23.8
22.9
TORQ(Kg·Cm)
4.2
6.3
8.8
11.4
15.1
18.1
19.8
20
20
20
20
20
20
20
20
GEAR
1/154
1/172
1/215
1/300
1/380
1/408
1/532
1/673
1/825
SPEED(RPM)
19.5
17.4
13.9
10.0
7.9
7.3
5.6
4.4
3.6
TORQ(Kg·Cm)
20
20
20
20
20
20
20
20
20
GEAR
1/10
1/15
1/21
1/27
1/36
1/43
1/47
1/55
1/60
1/75
1/86
1/100
1/115
1/126
1/131
SPEED(RPM)
300.0
200.0
142.8
111.1
83.3
69.7
63.8
54.5
50.0
40.0
34.9
30.0
26.1
23.8
22.9
TORQ(Kg·Cm)
5.6
8.4
11.7
15.1
20
20
20
20
20
20
20
20
20
20
20
GEAR
1/154
1/172
1/215
1/300
1/380
1/408
1/532
1/673
1/825
SPEED(RPM)
19.5
17.4
13.9
10.0
7.9
7.3
5.6
4.4
3.6
TORQ(Kg·Cm)
20
20
20
20
20
20
20
20
20
GEAR
1/10
1/15
1/21
1/27
1/36
1/43
1/47
1/55
1/60
1/75
1/86
1/100
1/115
1/126
1/131
SPEED(RPM)
300.0
200.0
142.8
111.1
83.3
69.7
63.8
54.5
50.0
40.0
34.9
30.0
26.1
23.8
22.9
TORQ(Kg·Cm)
2.8
4.0
5.8
7.4
9.8
11.8
12.8
15.0
16.4
20
20
20
20
20
20
GEAR
1/154
1/172
1/215
1/300
1/380
1/408
1/532
1/673
1/825
SPEED(RPM)
19.5
17.4
13.9
10.0
7.9
7.3
5.6
4.4
3.6
TORQ(Kg·Cm)
20
20
20
20
20
20
20
20
20
